Activity API

Learn how to access your team performance data via our Activity API

Activity API allows you to retrieve performance data on your team operating within Lexer Engage. Access insightful metrics such as the number of closed cases, average response time, or your overall NPS score.

Our API supports two types of requests; Get and Post requests.

  • Get requests allow you to access the user, groups and forms metadata.
  • Post requests allow you to run queries to return team insights

Authenticating your requests

You will need an API token to access your Activity data. API Tokens are managed within Integrate, and require Manager permissions to access and modify. All endpoints require an API token to authenticate your requests.

API tokens can only be viewed at the moment you create them, ensuring that your token is only available for the use case it was created for. If you misplace your token you can either reset the token or generate a new one.

We suggest creating a new API token for each application or use case. As rate limits are token specific, this will prevent multiple applications from impacting each other.

Retrieve users, groups and forms

GET Users

Retrieve a list of users that have access to your Lexer account. You can use these user details to filter any of the Activity queries for agent specific metrics. Here we’ll describe how you request and interpret this information.

curl -H "Content-Type: application/json" -H "Auth-Api-Token: 12345678-1234-1234-1234-123456789" -X GET https://api.lexer.io/v1/users

Endpoint https://api.lexer.io/v1/users

  {
"id": 12345,
"email": "jane@business.io",
"first_name": "Jane",
"last_name": "Remington",
"timezone": "Australia/Sydney",
"gmtoffset": 10,
"sign_in_count": 76,
"last_sign_in_at": "2018-03-21T06:09:01Z",
"archived": false,
"groups": [
123,
456,
789,
]
}

Property

Description

Type

id

user id

number

email

email account used to login

string

first_name

first name of the user

string

last_name

last name of the user

string

timezone

timezone location of user

string

gmtoffset

timezone offset of user

number

sign_in_count

count of logins

number

last_sign_in_at

date of users last login

string

archived

archived flag for user

boolean

groups

groups the user is in

array

GET Groups

Retrieve a list of groups that exist in your Lexer account. You can use these group details to filter any of the Activity queries for team specific metrics. Here we’ll describe how you request and interpret this information.

curl -H "Content-Type: application/json" -H "Auth-Api-Token: 12345678-1234-1234-1234-123456789" -X GET https://api.lexer.io/v1/groups

Endpoint https://api.lexer.io/v1/groups

  {
"id": 123,
"name": "Social Customer Care",
"comment": "Social customer care team members"
}

Property

Description

Type

id

group id

number

name

name of the group

string

comment

description of the group

string

GET Forms

Retrieve a list of forms/surveys that exist in your Lexer account. These include NPS surveys, authentication forms, and competition surveys. You need to specify the NPS Survey id when requesting the NPS Summary or NPS Volume data. Here we’ll describe how you request and interpret this information.

curl -H "Content-Type: application/json" -H "Auth-Api-Token: 12345678-1234-1234-1234-123456789" -X GET https://api.lexer.io/v1/forms

Endpoint https://api.lexer.io/v1/forms

  {
"id": 55,
"name": "NPS Survey",
"title": "Lexer NPS Survey",
"archived": false,
"created_at": "2018-05-26T21:54:19Z",
"groups": [
123
],
"nps": false,
"form_url": "https://d1z1wrkt4y2iqm.cloudfront.net/123455678899876543/1/form"
}

Property

Description

Type

id

form id

number

name

name of the form

string

title

title of the form

string

archived

archived flag

boolean

created_at

date this form was created

string

groups

groups that have access to this form

array

nps

is this form an NPS survey?

boolean

form_url

URL to view this form

string

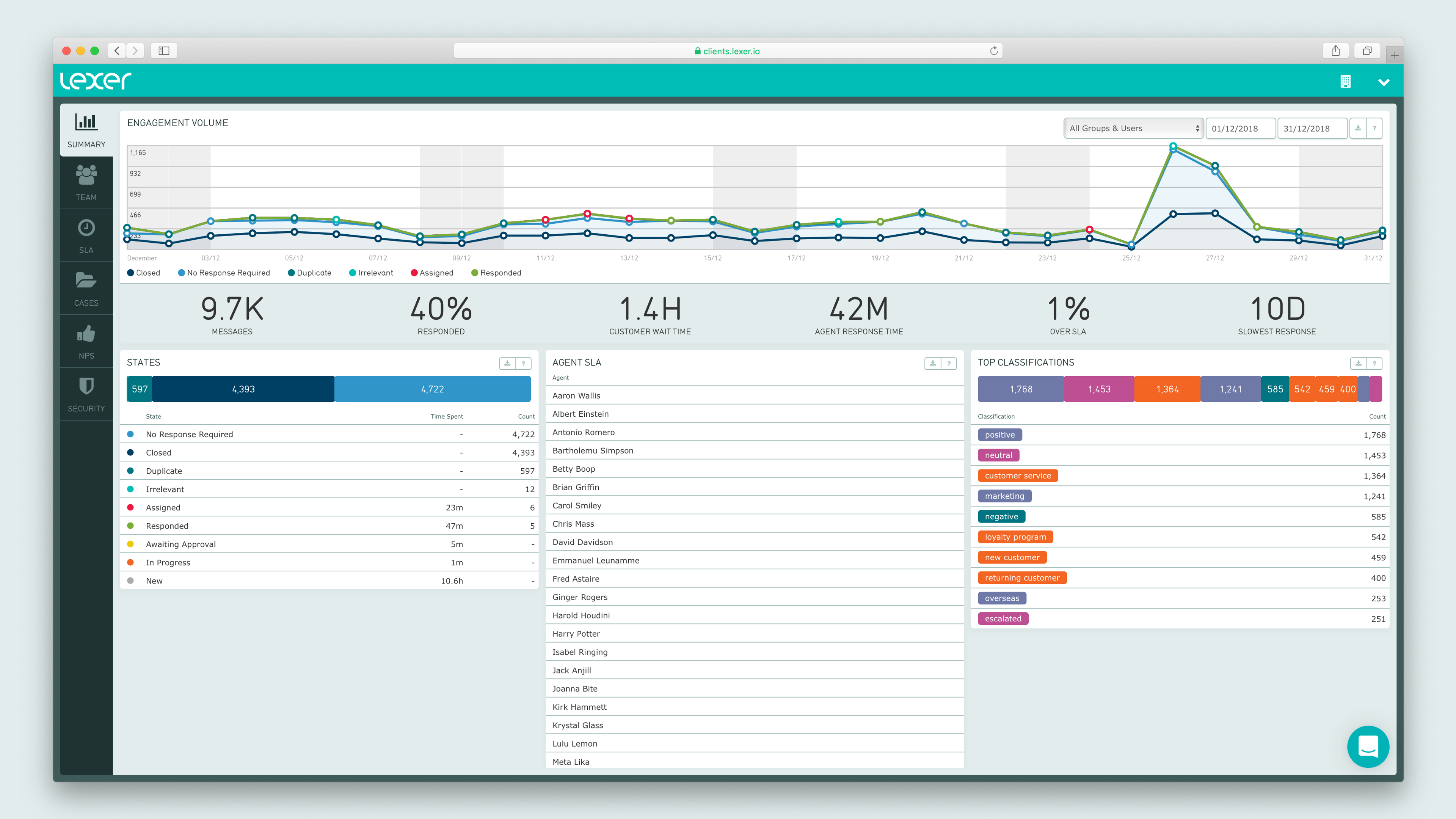

Summary

Access your teams high level performance metrics - including total messages handled, response times, and classifications on these messages.

Summary Metrics

Access the summary metrics that are used to power the big number metrics you can see in Activity. This includes the number of messages handled, response count, average response time, agent response time and a few others.

curl -H "Content-Type: application/json" -H "Auth-Api-Token: 12345678-1234-1234-1234-123456789" https://api.lexer.io/v1/activity/reports -d ' { "type": "summary", "date_from": "2018-04-01T00:00:00+11:00", "date_to": "2018-04-30T23:59:59+11:00" }'

Endpoint https://api.lexer.io/v1/activity/reports

Type: summary

{
"total_volume": 81,
"avg_response_time": 181795.692883103,
"avg_action_response_time": 167207.984987586,
"total_responded_to": 29,
"broke_sla": 11,
"broke_action_sla": 10,
"min_response_time": 34.090906,
"median_response_time": 649.951914,
"max_response_time": 1387160.862218,
"min_action_response_time": 5.63089,
"median_action_response_time": 96.865511,
"max_action_response_time": 1387064.010109,
"avg_action_response_time_min": 2786.7997497931,
"avg_response_time_min": 3029.9282147183835,
"median_action_response_time_min": 1.6144251833333334,
"median_response_time_min": 10.8325319
}

Property

Description

Type

total_volume

total messages handled

number

total_responded_to

messages responded to

number

broke_sla

number of messages that exceeded customer SLA time

number

broke_action_sla

number of messages that exceeded agent handle SLA time

number

min_response_time

min customer wait time in seconds

number

max_response_time

max customer wait time in seconds

number

min_action_response_time

min agent response time in seconds

number

max_action_response_time

max agent response time in seconds

number

median_response_time

median customer wait time in seconds

number

median_response_time_min

median customer wait time in minutes

number

median_action_response_time

median agent response time in seconds

number

median_action_response_time_min

median agent response time in minutes

number

avg_response_time

average customer wait time in seconds

number

avg_action_response_time

average agent response time in seconds

number

avg_response_time_min

average customer wait time time in minutes

number

avg_action_response_time_min

average agent response time in minutes

number

Summary Volume

Daily volume of messages in each workflow state. Your response will contain an array for each state, and within that state an message for each period (i.e. each day).

curl -H "Content-Type: application/json" -H "Auth-Api-Token: 12345678-1234-1234-1234-123456789" https://api.lexer.io/v1/activity/reports -d ' { "type": "states_volume", "date_from": "2018-04-01T00:00:00+11:00", "date_to": "2018-04-30T23:59:59+11:00" }'

Endpoint https://api.lexer.io/v1/activity/reports

Type: states_volume

{
"closed": [
{
"state": "closed",
"value": 174,
"date_range": {
"date_from": "2018-04-27 00:00"
}
},
{
"state": "closed",
"value": 234,
"date_range": {
"date_from": "2018-04-28 00:00"
}
},
{
"state": "closed",
"value": 255,
"date_range": {
"date_from": "2018-04-29 00:00"
}
},
{
"state": "closed",
"value": 108,
"date_range": {
"date_from": "2018-04-30 00:00"
}
}
]
}

Property

Description

Type

state

workflow state

string

value

number of messages in this state

number

date_range

date for value

string

Notes: If your query range is less than 4 days the time intervals will be reduced from days to hours.

States

Total volume of messages in each of the workflow states.

curl -H "Content-Type: application/json" -H "Auth-Api-Token: 12345678-1234-1234-1234-123456789" https://api.lexer.io/v1/activity/reports -d ' { "type": "user_volume", "date_from": "2018-04-01T00:00:00+11:00", "date_to": "2018-04-30T23:59:59+11:00" }'

Endpoint https://api.lexer.io/v1/activity/reports

Type: user_volume

[
{
"state": "closed",
"volume": 92
},
{
"state": "responded",
"volume": 49
},
{
"state": "assigned",
"volume": 26
},
{
"state": "in_progress",
"volume": 13
},
{
"state": "duplicate",
"volume": 4
},
{
"state": "awaiting_approval",
"volume": 1
}
]

Property

Description

Type

state

workflow state

string

volume

count of messages

number

Classifications (Messages)

Classifications and the number of messages in each workflow state. You can get the total count for each classification using the ‘all_states’ value for the state field.

curl -H "Content-Type: application/json" -H "Auth-Api-Token: 12345678-1234-1234-1234-123456789" https://api.lexer.io/v1/activity/reports -d ' { "type": "classifications", "date_from": "2018-04-01T00:00:00+11:00", "date_to": "2018-04-30T23:59:59+11:00" }'

Endpoint https://api.lexer.io/v1/activity/reports

Type: classifications

[
{
"classification_id": 123,
"classification": "amusing",
"state": "assigned",
"volume": 2
},
{
"classification_id": 123,
"classification": "amusing",
"state": "all_states",
"volume": 3
},
{
"classification_id": 123,
"classification": "amusing",
"state": "closed",
"volume": 1
},
{
"classification_id": 143,
"classification": "customer service",
"state": "responded",
"volume": 1
},
{
"classification_id": 143,
"classification": "customer service",
"state": "all_states",
"volume": 1
}
]

Property

Description

Type

classification_id

unique id

number

classification

name

string

state

workflow state

string

volume

count of classifications

number

Response Time

Returns the daily average response time for all messages handled by your team. Here we’re looking at the same data that powers the SLA Performance line chat in Activity. Note that if your query range is 3 days or less, the intervals will be reduced to hourly.

curl -H "Content-Type: application/json" -H "Auth-Api-Token: 12345678-1234-1234-1234-123456789" https://api.lexer.io/v1/activity/reports -d ' { "type": "response_volume", "date_from": "2018-04-01T00:00:00+11:00", "date_to": "2018-04-30T23:59:59+11:00" }'

Endpoint https://api.lexer.io/v1/activity/reports

Type: response_volume

{
"avg_response_time": [

{
"value": 317691.388907962,
"date_range": {
"date_from": "2018-06-05 00:00"
}
},
{
"value": 31159.3797606667,
"date_range": {
"date_from": "2018-06-06 00:00"
}
},
{
"value": 69850.8753626667,
"date_range": {
"date_from": "2018-06-07 00:00"
}
},
{
"value": 10661.255474,
"date_range": {
"date_from": "2018-06-08 00:00"
}
}
]
}

Property

Description

Type

value

average response time in minutes

number

date_range

date interval

string

Team

Access your teams individual performance data - including messages handled per agent, response times, and more.

Agent Summary

Return the performance metrics for each agent in your team. The data you access in this request is used to populate the ‘Team’ chart in Activity.

curl -H "Content-Type: application/json" -H "Auth-Api-Token: 12345678-1234-1234-1234-123456789" https://api.lexer.io/v1/activity/reports -d ' { "type": "user_summary", "date_from": "2018-04-01T00:00:00+11:00", "date_to": "2018-04-30T23:59:59+11:00" }'

Endpoint https://api.lexer.io/v1/activity/reports

Type: user_summary

[
{
"first_name": "Jane",
"last_name": "Pear",
"mentions_assigned": 12,
"user_id": "123",
"responded_to": 9,
"responded_to_in_private": 6,
"avg_response_time": 17053.3492157778,
"min_response_time": 56.983366,
"max_response_time": 84664.420214,
"avg_action_response_time": 278.770835555556,
"min_action_response_time": 7.767898,
"max_action_response_time": 2261.353394,
"total_responded_to": 9,
"broke_sla": 3,
"broke_action_sla": 0,
"avg_response_time_min": 284.22248692962995,
"avg_action_response_time_min": 4.6461805925926,
"fraction_responded_to": 0.75,
"fraction_responded_to_in_private": 0.6666666666666666,
"fraction_broke_sla": 0.3333333333333333,
"fraction_broke_action_sla": 0.0
},
{
"first_name": "Barry",
"last_name": "Banana",
"mentions_assigned": 7,
"user_id": "789",
"responded_to": 1,
"responded_to_in_private": 1,
"avg_response_time": 352842.64921,
"min_response_time": 352842.64921,
"max_response_time": 352842.64921,
"avg_action_response_time": 134.51357,
"min_action_response_time": 134.51357,
"max_action_response_time": 134.51357,
"total_responded_to": 1,
"broke_sla": 1,
"broke_action_sla": 0,
"avg_response_time_min": 5880.710820166667,
"avg_action_response_time_min": 2.241892833333333,
"fraction_responded_to": 0.14285714285714285,
"fraction_responded_to_in_private": 1.0,
"fraction_broke_sla": 1.0,
"fraction_broke_action_sla": 0.0
}
]

Property

Description

Type

first_name

first name of agent

string

last_name

last name of agent

string

mentions_assigned

count of messages assigned to agent

number

user_id

unique id of agent

string

responded_to

count of messages responded to

number

responded_to_in_private

count of messages responded to that are private messages

number

avg_response_time

average customer to reponse time in seconds

number

min_response_time

average customer to reponse time in seconds

number

max_response_time

max customer to reponse time in seconds

number

avg_action_response_time

average assign to response time in seconds

type

min_action_response_time

min assign to response time in seconds

type

max_action_response_time

max assign to response time in seconds

type

total_responded_to

count of messages responded to

number

broke_sla

number of messages that exceeded customer SLA time

number

broke_action_sla

number of messages that exceeded agent response SLA time

number

avg_response_time_min

average customer response time in minutes

number

avg_action_response_time_min

average agent response time in minutes

type

fraction_responded_to

responded_to divided by mentions_assigned

number

fraction_responded_to_in_private

responded_to_in_private divided by mentions_assigned

number

fraction_broke_sla

broke_sla divided by responded_to

number

fraction_broke_action_sla

broke_action_sla divided by responded_to

number

Agent Volume

Return the count of messages currently assigned to each agent in your team. For each team member, this will also breakdown the messages by their current workflow state.

curl -H "Content-Type: application/json" -H "Auth-Api-Token: 12345678-1234-1234-1234-123456789" https://api.lexer.io/v1/activity/reports -d ' { "type": "user_volume", "date_from": "2018-04-01T00:00:00+11:00", "date_to": "2018-04-30T23:59:59+11:00" }'

Endpoint https://api.lexer.io/v1/activity/reports

Type: user_volume

[
{
"user_id": 123,
"first_name": "Jane",
"last_name": "Pear",
"states": {
"all_states": 166,
"all_closed_states": 110,
"new": 0,
"assigned": 15,
"in_progress": 14,
"responded": 27,
"awaiting_approval": 0,
"redirected": 0,
"irrelevant": 0,
"duplicate": 0,
"closed": 110,
"no_response_required": 0
}
},
{
"user_id": 789,
"first_name": "Barry",
"last_name": "Banana",
"states": {
"all_states": 4,
"all_closed_states": 1,
"new": 0,
"assigned": 1,
"in_progress": 1,
"responded": 1,
"awaiting_approval": 0,
"redirected": 0,
"irrelevant": 0,
"duplicate": 0,
"closed": 1,
"no_response_required": 0
}
}
]

Property

Description

Type

user_id unique

id for agent

number

first_name

first name of agent

string

last_name

last name of agent

string

states

count of each state owned by agent

array

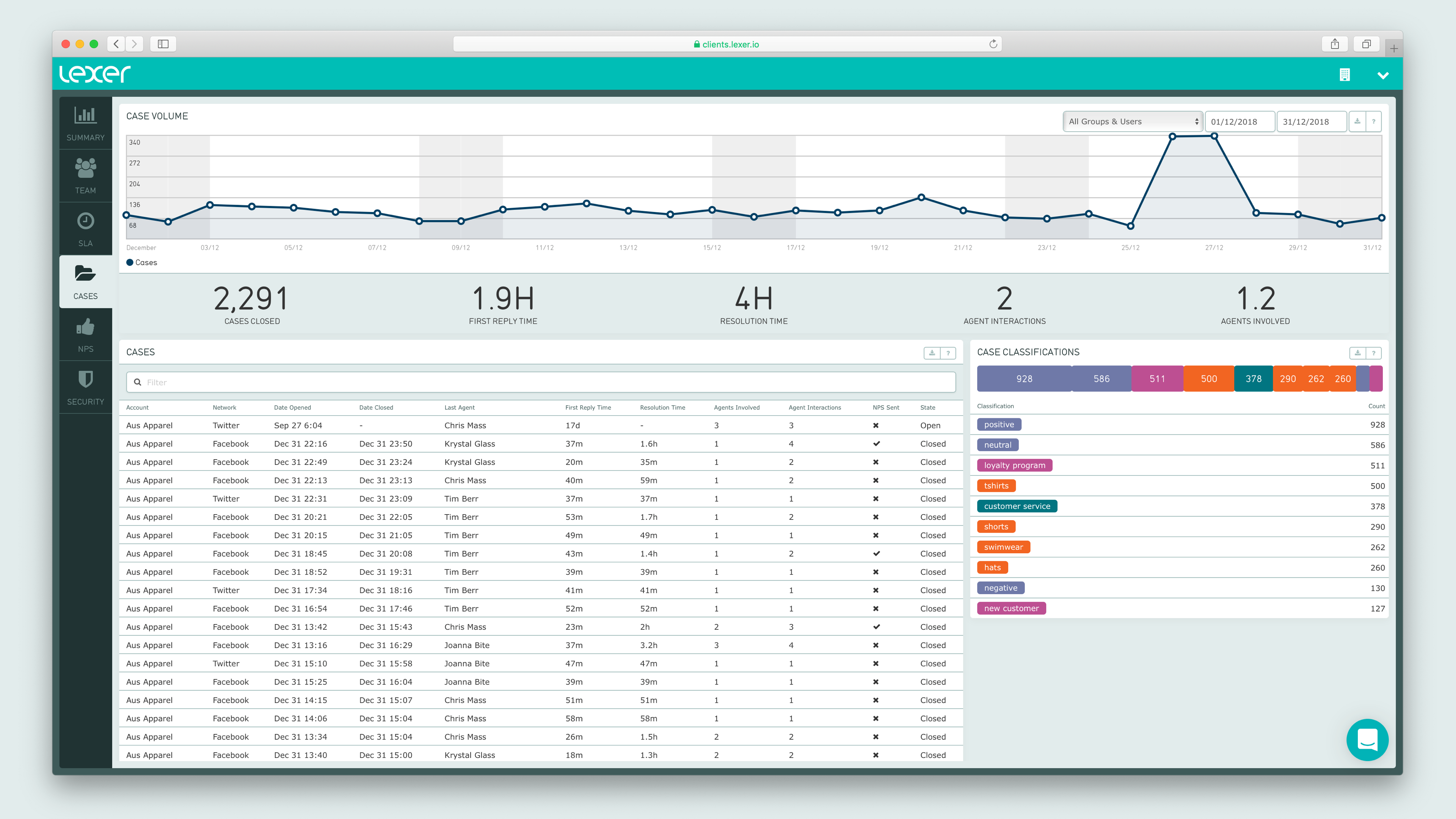

Cases

Access performance metrics on the conversations your team are having, which we call cases. This includes total case volume, first response times, resolution times, and case classifications.

Case Summary

Return the summary metrics for the cases your team have handled. Cases are only created when an agent responds to a customer.

curl -H "Content-Type: application/json" -H "Auth-Api-Token: 12345678-1234-1234-1234-123456789" https://api.lexer.io/v1/activity/reports -d ' { "type": "case_summary", "date_from": "2018-04-01T00:00:00+11:00", "date_to": "2018-04-30T23:59:59+11:00" }'

Endpoint https://api.lexer.io/v1/activity/reports

Type: case_summary

{
"total_cases": 10,
"first_reply_time": 305511.915624,
"resolution_time": 427361.668069,
"median_first_reply_time": 83991.86431,
"median_resolution_time": 310362.299289,
"agent_interactions": 2.4,
"agents_involved": 1.0
}

Property

Description

Type

total_cases

count of cases closed in this period

number

first_reply_time

average case first reply time in seconds

number

resolution_time

average case resolution time in seconds

number

median_first_reply_time

median case first reply time in seconds

number

median_resolution_time

median case resolution time in seconds

number

agent_interactions

average number of agent replies per case

number

agents_involved

average number of agents responding per case

number

Case Volume

Return the count of open cases for each day. Cases are tracked from the first customer query to the last agent response. Cases are closed 24 hours of inactivity from either the customer or the agent, provided all customer messages are in a closed state.

curl -H "Content-Type: application/json" -H "Auth-Api-Token: 12345678-1234-1234-1234-123456789" https://api.lexer.io/v1/activity/reports -d ' { "type": "case_volume", "date_from": "2018-04-01T00:00:00+11:00", "date_to": "2018-04-30T23:59:59+11:00" }'

Endpoint https://api.lexer.io/v1/activity/reports

Type: case_volume

{
"open": [
{
"value": 9,
"date_range": {
"date_from": "2018-04-01 00:00"
}
},
{
"value": 9,
"date_range": {
"date_from": "2018-04-02 00:00"
}
},
{
"value": 9,
"date_range": {
"date_from": "2018-04-03 00:00"
}
},
{
"value": 9,
"date_range": {
"date_from": "2018-04-04 00:00"
}
},
{
"value": 9,
"date_range": {
"date_from": "2018-04-05 00:00"
}
},
{
"value": 10,
"date_range": {
"date_from": "2018-04-06 00:00"
}
},
{
"value": 9,
"date_range": {
"date_from": "2018-04-07 00:00"
}
}
]
}

Property

Description

Type

value

count of active cases

number

date_from

date interval

string

Case Classifications

Return the count of classifications applied to the cases in this time period. Classifications are only counted once per case, helping you understand the number of conversations about each topic.

curl -H "Content-Type: application/json" -H "Auth-Api-Token: 12345678-1234-1234-1234-123456789" https://api.lexer.io/v1/activity/reports -d ' { "type": "case_classifications", "date_from": "2018-04-01T00:00:00+11:00", "date_to": "2018-04-30T23:59:59+11:00" }'

Endpoint https://api.lexer.io/v1/activity/reports

Type: case_classifications

[
{
"classification_id": 466,
"classification": "positive",
"volume": 1
},
{
"classification_id": 526,
"classification": "social nps",
"volume": 1
},
{
"classification_id": 528,
"classification": "feedback",
"volume": 1
},
{
"classification_id": 1246,
"classification": "amusing",
"volume": 1
},
{
"classification_id": 1465,
"classification": "image",
"volume": 1
},
{
"classification_id": 1467,
"classification": "loyalty",
"volume": 1
},
{
"classification_id": 1472,
"classification": "bot",
"volume": 1
}
]

Property

Description

Type

classification_id

unique id for each classification

number

classification

name for each classification

string

volume

count of classifications

number

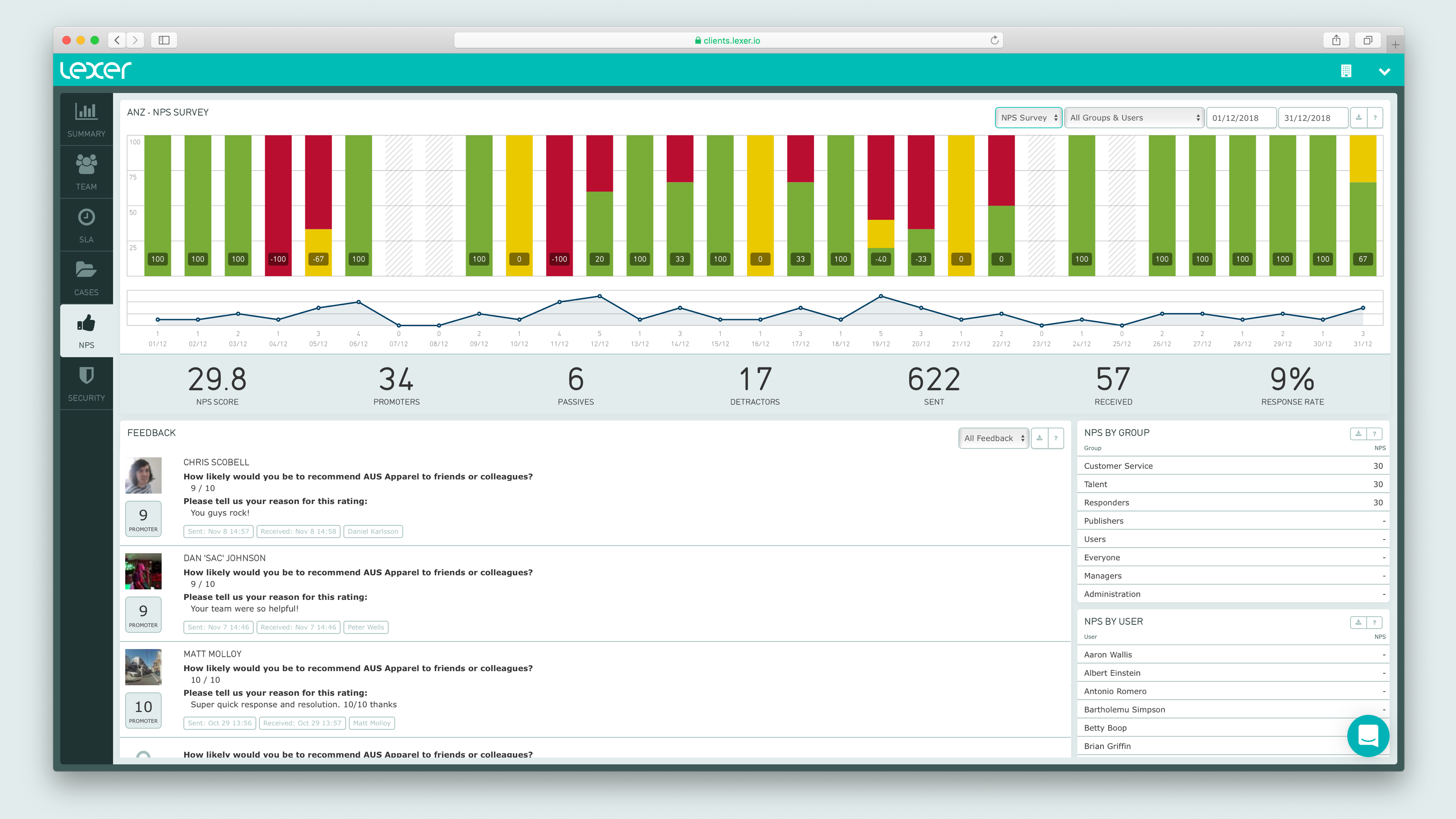

NPS

Access your teams NPS performance metrics - including overall score, count of detractors, promoters, passives, and your average response rate. Reminder to retrieve your forms (see GET Forms above) to retrieve a list of the NPS Surveys your team are using. The ID for your form will be used to generate the following queries.

NPS Summary

Return the summary metrics for the specified NPS Survey.

curl -H "Content-Type: application/json" -H "Auth-Api-Token: 12345678-1234-1234-1234-123456789" https://api.lexer.io/v1/activity/reports -d ' { "type": "nps_summary", "date_from": "2018-04-01T00:00:00+11:00", "date_to": "2018-04-30T23:59:59+11:00", "form": 123, "nps_category": "all" }'

Endpoint https://api.lexer.io/v1/activity/reports

Type: nps_summary

{
"total_sent": 16,
"total_received": 12,
"total_promoters": 9,
"total_passives": 1,
"total_detractors": 2,
"nps_score": 58.333333333333336
}

Property

Description

Type

total_sent

count of surveys sent

number

total_received

count of responses received

number

total_promoters

count of 9-10 score responses

number

total_passives

count of 7-8 score responses

number

total_detractors

count of <7 score responses

number

nps_score

average nps score

number

NPS Volume

Return the daily volume of NPS scores and responses for each day in your query range.

curl -H "Content-Type: application/json" -H "Auth-Api-Token: 12345678-1234-1234-1234-123456789" https://api.lexer.io/v1/activity/reports -d ' { "type": "nps_volume", "date_from": "2018-04-01T00:00:00+11:00", "date_to": "2018-04-30T23:59:59+11:00", "form": 123, "nps_category": "all" }'

Endpoint https://api.lexer.io/v1/activity/reports

Type: nps_volume

[
{
"date": "2018-04-01T13:00:00+00:00",
"timestamp": 1522587600,
"data": {
"total_sent": 0,
"total_received": 0,
"total_promoters": 0,
"total_passives": 0,
"total_detractors": 0,
"nps_score": 0.0
}
},
{
"date": "2018-04-02T13:00:00+00:00",
"timestamp": 1522674000,
"data": {
"total_sent": 0,
"total_received": 0,
"total_promoters": 0,
"total_passives": 0,
"total_detractors": 0,
"nps_score": 0.0
}
},
{
"date": "2018-04-03T13:00:00+00:00",
"timestamp": 1522760400,
"data": {
"total_sent": 0,
"total_received": 0,
"total_promoters": 0,
"total_passives": 0,
"total_detractors": 0,
"nps_score": 0.0
}
},
{
"date": "2018-04-04T13:00:00+00:00",
"timestamp": 1522846800,
"data": {
"total_sent": 0,
"total_received": 0,
"total_promoters": 0,
"total_passives": 0,
"total_detractors": 0,
"nps_score": 0.0
}
},
{
"date": "2018-04-05T13:00:00+00:00",
"timestamp": 1522933200,
"data": {
"total_sent": 0,
"total_received": 0,
"total_promoters": 0,
"total_passives": 0,
"total_detractors": 0,
"nps_score": 0.0
}
},
{
"date": "2018-04-06T13:00:00+00:00",
"timestamp": 1523019600,
"data": {
"total_sent": 0,
"total_received": 0,
"total_promoters": 0,
"total_passives": 0,
"total_detractors": 0,
"nps_score": 0.0
}
},
{
"date": "2018-04-07T13:00:00+00:00",
"timestamp": 1523106000,
"data": {
"total_sent": 0,
"total_received": 0,
"total_promoters": 0,
"total_passives": 0,
"total_detractors": 0,
"nps_score": 0.0
}
}
]

Property

Description

Type

date

date time in UTC

string

timestamp

date time in Epoch time

number

total_sent

count of surveys sent

number

total_received

count of responses received

number

total_promoters

count of 9-10 score responses

number

total_passives

count of 7-8 score responses

number

total_detractors

count of <7 score responses

number

nps_score

average nps score

number

Responses CSV Export

You also have the ability to export the master response file to CSV for custom analysis. This is the SLA Responses file that you can export from the hub, and contains all of the messages your team have handled, including their associated interaction metadata (agent response time, customer wait time, notes etc). Accessing this file via the API is done in three steps:

  1. Initiate the export job
  2. Retrieve the CSV file location
  3. Download the CSV file

1. Initiate the export job

curl -H "Content-Type: application/json" -H "Auth-Api-Token: 12345678-1234-1234-1234-123456789" https://api.lexer.io/v1/activity/reports -d ' { "type": "mention_sla_export", "date_from": "2019-06-15T00:00:00+11:00", "date_to": "2019-06-30T23:59:59+11:00" }'

This will respond with the following:

{ "status": "pending", "url": null, "token": "<report_token>" }

Grab this token to use in the next step.

2. Retrieve the CSV file location

Run the following command to download the file:

curl -G -H 'Auth-Api-Token: 12345678-1234-1234-1234-123456789' 'https://clients.lexer.io/api/public/v1/activity/reports/status?token=<report_token>'

This will respond with the following when complete:

{ "status": "complete", "url": "<CSV File Location>", "token": "<report_token> }

3. Download the CSV file

Finally you run the following to download the CSV file:

curl <CSV File Location>

Errors

The API may return the following error codes.

Code

Type

Description

400

Invalid report - date range is too long

Your date range must be not greater than 12 months

400

Invalid report - starting date is a future date

Starting date must be in the past

400

Invalid report - invalid type

Chart type provided is invalid

401

Unauthorized - api token not matching

Your API token provided is not valid

401

Unauthorized

Missing authentication data

404

Not found

General error for malformed request

429

Rate limited exceeded

You’re making too many requests

Rate Limiting

The API may rate limit requests made by your application. Our rate limits are managed by an allowed number of requests per time window. A single request could be to retrieve a list of users, or query a particular chart endpoint.

The rate limit is 100 requests per 5 minutes per API Token.

In the case you are rate limited a “429 Rate limited exceeded” response will be returned.

Powered by HelpDocs (opens in a new tab)
